-Rich management functions
-Support all port harness forwarding, port aggregation
-Support IEEE802.1Q Tag VLAN to enhance network security
-Flexible management and easy maintenance
-Store-and-forward and frame filtering capabilities
|

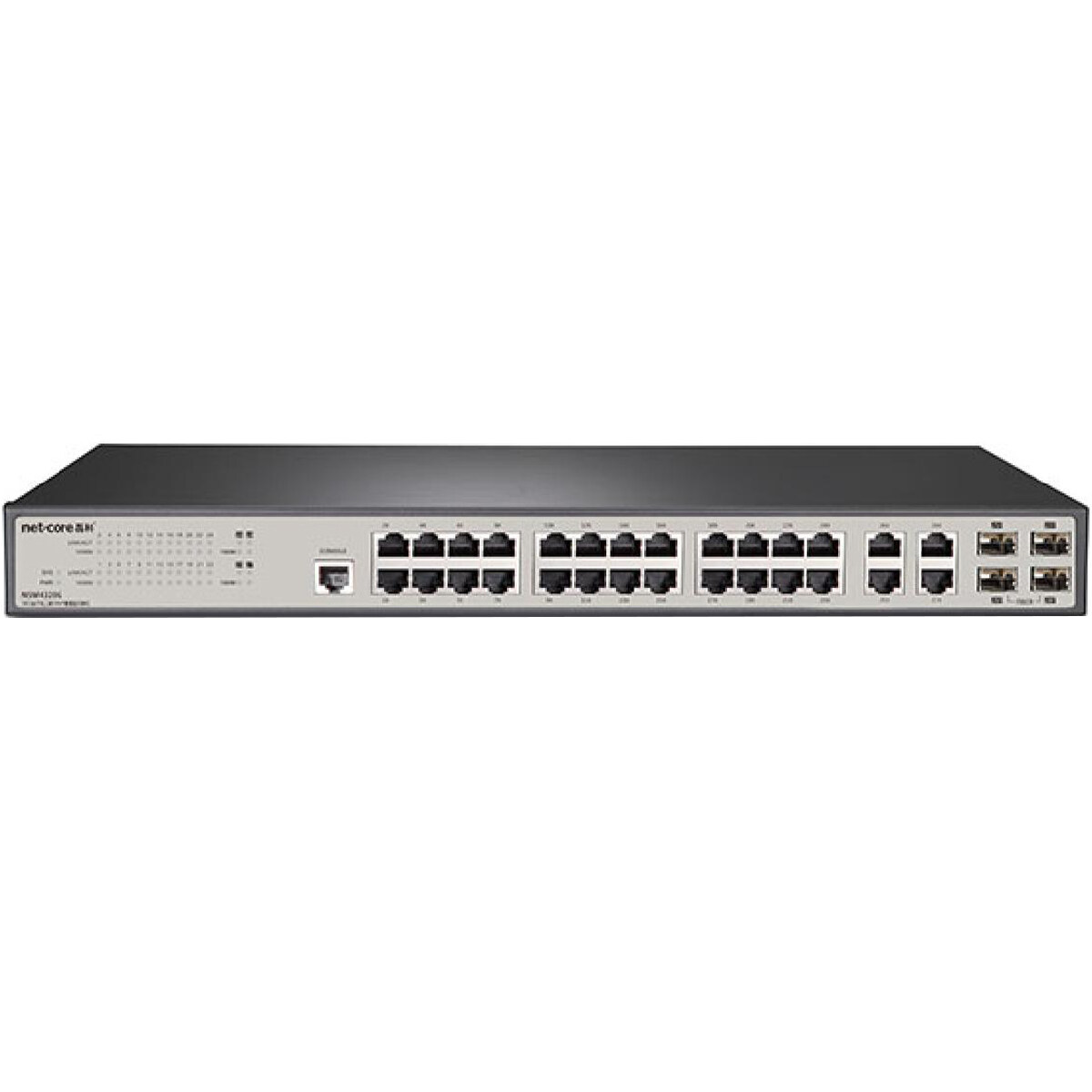

Product model |
NSM4328G |
| Standard protocol | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x, IEEE 802.3ad,IEEE802.3z,IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s |
| Network medium |
10BASE-T: Cat3 and above unshielded/shielded twisted pair (≤100m) 100BASE-TX: Cat5 and above unshielded/shielded twisted pair (≤100m) 1000BASE-TX: Cate5 and above unshielded/shielded twisted pair (≤100m) |
| Port |
24*10/100/1000M RJ45 Port 4*10/100/1000M RJ45 Port 4*10/100/1000M SFP Port |
| Forwarding rate | 10/100/1000Mbps |
| Backplane bandwidth |
56Gbps |
| MAC address table | 8K |
| Forwarding mode | Store and forward |
| Functions | IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Port isolation, DHCP server protection, Link aggregation |
| Size | 140*133.3*41.8 mm（L*W*H） |
| LED display | LINK/ACT、10/100M、1000M、PWR、SYS |
| Power | DC 12V/1A |
| Working environment |
Operating temperature: 0°C ~ 40°C Storage temperature: -40°C ~ 70°C Operating humidity: 10% ~ 90%, RH non-condensing Storage humidity: 5% ~ 90%, RH non-condensing |
| Forwarding mode | Store and forward |
|
Port aggregation |
Support LACP Support Manual aggregation Support up to 8 aggregation groups, each aggregation group supports up to 8 ports |
| MAC address table | Support 8K MAC Support Black hole MAC Support set the maximum number of port MAC learning |
| VLAN |
Support IEEE802.1Q _VLAN（4K） Support Voice VLANSupport GVRP Support VLAN VPN（Q-in-Q） |
| DHCP | Support DHCP Client/ DHCP Relay/ DHCP Snooping |
| 組播 | IGMP Snooping IGMP V1/V2/v3 |
| QoS |
Support to limit the rate of receiving and sending messages on the port Support 802.1p and DSCP priority re marking of messages Support message redirection Support 4 port output queues Support flexible queue scheduling algorithms (SP, WRR, SP+WRR) |
| Port mirror |
Supports N: 1 port mirroring Support stream mirroring RSPAN (Remote Switched Port Analyzer) |
| Safety performance |
Support IEEE 802.1X authentication/centralized MAC address authentication Support AAA&RADIUS authentication Support MAC address learning limit Supports the binding of MAC address with port and IP Support SSH2.0 Support ARP intrusion detection function Support port isolation Support MAC address black hole |
| Maintain |
Support WEB/TFTP loading and upgrading Support command line interface (CLI), Telnet, and Console interfaces for configuration Support SNMPV1/V2/V3 Support IPStack cluster management Support system log, graded alarm and debugging information output Support PING、Tracert Support DLDP (Device Link Detection Protocol) Support port loopback detection |
